本机的磁性滚轮能吸附在钢管上自动环绕爬行切割钢管，
倾斜割炬可切割坡口，也能再水平.垂直.迎面上切割，
广泛用于管道工程网管的切割。
切割钢管直径＞Φ108mm,壁厚5-50mm
切割精度在Φ159-Φ426mm无缝钢管上切割一周，中心偏差＜0.5mm,
表面精糙度达12.5 - 6.5
切割速度：5-750mm/min
重量：23.5kg
注：如需切割直径600mm以上管道需另配钢带装置总成（选购件）

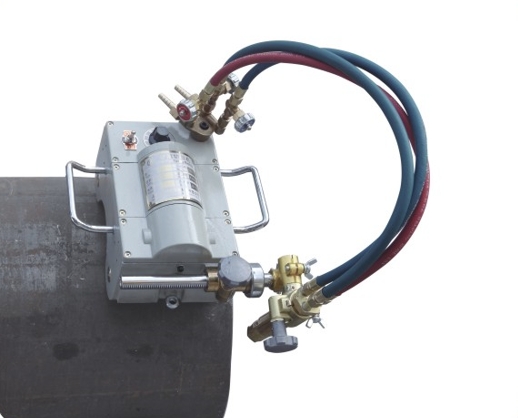

CG2-11 MAG MAGNETIC GAS CUTTING MACHINE FOR PIPES
Magnetic wheel of the machine attached to the steel pipe can automatically craw around the pipe,
The bevel can be cut by incilined torch,so does horizontal,vertical and face-up direction,
The machine has been widely used in pipeline engineering projects.
Diammeter of pipes:＞Φ108mm;wall thickness:5-50mm
Center deviation＜0.5mm when cutting around the seamless steel pipe for one cycle on the precision of Φ159-Φ426mm,
Surface roughness:12.5-6.5
Cutting speed:5-750mm/min
Weight:23.5kg
